Home Recorders DW-VP16xT16P

DW-VP16xT16P

VMAX IP Plus 16-channel NVR
Find a Reseller Request a Demo Contact Us FAQs
Features
  • Complete installation, set up and camera configuration in under three minutes!
  • CCIP™ system encryption protects your surveillance system from out of network attacks
  • Record and manage single-sensor IP cameras up to 4K (3840×2160), with 160Mbps maximum throughput
  • Local power for up to 16 IP cameras via resident PoE switch
  • DW Witness™ turns a smartphone or tablet into an additional surveillance camera
  • PathFinder™ Peer-to-Peer (P2P) remote connection
  • HTTPS encryption supported
  • Automatic device discovery
  • Control any ONVIF camera’s set up and features remotely
  • 0TB-32TB storage options
  • Snapshot Notify™: camera notifications sent to an email or CMS
  • C3™ CMS and event server software up to 144 Channels
  • Event notifications via email, text and C3™ CMS and push notifications to mobile devices
  • Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
  • Dual-stream recording
  • Easy drag and drop camera management
  • Instant backup during playback
    • Show More

Learn about how DW
solutions can work for you

View All Markets

CCIP™ System Encryption

The CCIP™ (Closed Circuit IP) encryption is activated when the VMAX IP G4™ system sends a request for an encrypted stream from the camera. The camera then encrypts its RTSP stream a second time using TLS, using the encryption's user ID and password. The result is a secured and encrypted RTSP stream that can be read only by the requesting recorder.
See all compliant cameras.

3-minute installation

The entire system can be set up and configured in less than four minutes from power-up. Using the user-friendly startup wizard, configure the NVR’s main functions, locate and register all your cameras and set them to record in less than four minutes and with no need for a technical background!

C3™ CMS

C3™ CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.
Learn More.

PathFinder™

Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.
Learn More.

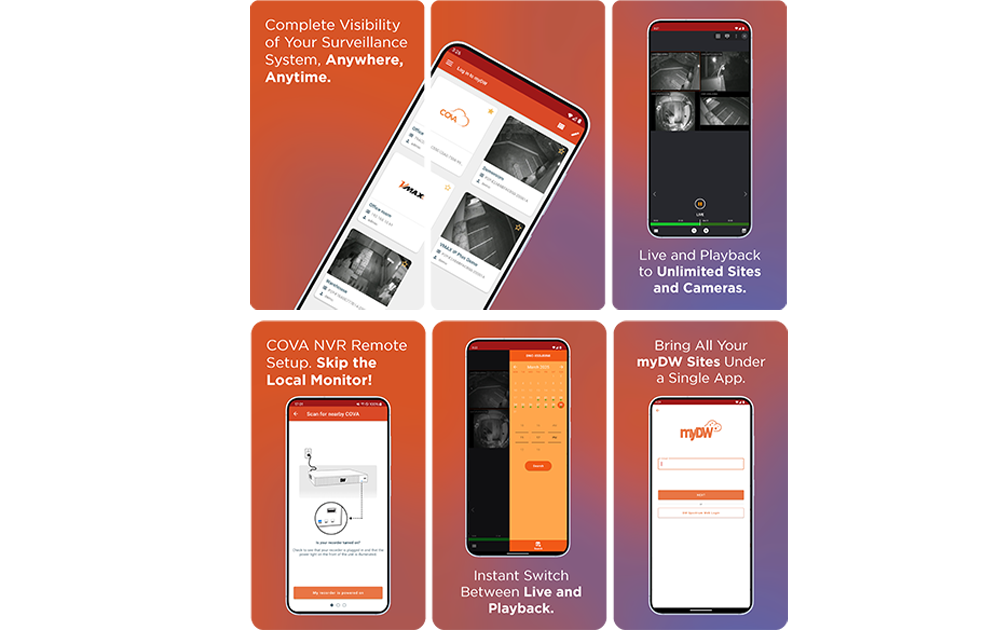

Push notifications via DW Mobile Plus App

DW’s recorders can send an event notification to your mobile device via the DW Mobile Plus app.

Specifications

Hardware
Display Modes 1
16
4
9
Sequence
Display Speed Up to 30fps per channel
Local Video Output Resolution 1024x768
1280x1024
1280x720
1920x1080 (1080p)
3840×2160 (4K)
Local Video Outputs 1x True HD output
1x VGA output
Max Supported Recording Resolution 4K (3840×2160)
PoE Type 100Mbps, 802.3at
Video Compression H.264
OS on SSD Hot-swappable bays with lock
Max throughput (Mbps) 160Mbps
Input channels 16 Channels
16 PoE channels
Storage
Raw internal storage options 003TB  004TB  006TB  008TB  009TB  012TB  016TB  018TB  024TB  032TB  No Local Storage
HDD healthcheck Temperature, S.M.A.R.T. with email notifications
Max HDD Bay 4 x SATA HDD
Maximum Storage No storage (DW-VP16P)
3TB (DW-VP163T-16P)
4TB (DW-VP164T-16P)
6TB (DW-VP166T-16P)
8TB (DW-VP169T-16P)
12TB (DW-VP1612T-16P)
16TB (DW-VP1616T-16P)
18TB (DW-VP1618T-16P)
24TB (DW-VP1624T-16P)
32TB (DW-VP1632T-16P)
VMS features
Alarm in/out 16 alarm outputs
4 alarm outputs
Audio in/out 1 input
1 output
Performance features AVI file backup
Camera Color Control
CCIP
Covert Channel
Digital Zoom in live and playback
Import and export settings
PoE built-in
Quick Setup under 3 Minutes
Real-time temp alert
Snapshot Notify™: Programmable interval camera image verification sent to an email
Watermak exported video
Playback Functions Calendar
Event search
Smart motion search
Thumbnail search
Timeline
Playback speed x1
x16
x2
x32
x4
x64
x8
x99
Post-recording 0~5 minutes
Pre- recording 0~5 seconds
PTZ control ONVIF
RS485
Recording Modes Continuous
Emergency
Motion detection
Pre- and post-alarm
Quick backup
Scheduled
Sensor
Recording Resolution and Recording Rate Up to 3840×2160 (4K): 270fps
Up to 3840×2160 (4K): 360fps
Up to 3840×2160 (4K): 480fps
System Operation Graphical user interface (GUI)
Joystick Controller (optional)
Remote Control (optional)
USB mouse (included)
Network
Backup Local backup via USB
Network backup via CMS
Ethernet Ports 1x 1G Ethernet (RJ45)
Firmware Upgrade CMS over network
FTP
USB
Protocol DDNS
DHCP
RTSP
Static fixed IP
uPNP
System recovery after power failure Auto-reboot and journaling file system
Transation verification Text-in Based (USB to Serial support, TCP/IP Network)
Transmission speed live Up to 3840×2160 (4K): 480fps
Remote Client DW VMAX Plus App
ACS VMAX Client for MAC
C3 CMS
DW Mobile Plus
DW VMAX App
DW Witness
Pivot CMS
Electrical
Maximum Power per Port Up to 30W
Power Consumption 300W total power budget, 5.5A
9.37W per PoE channel, simultaneous
A UPS is recommended
Power Requirements 110~240V A/C
Total PoE Power Budget 150W
General
Accessories IR remote control (optional)
Mouse
Operating Temperature and Humidity 20 ~ 90% RH
41 ~ 104 °F (5~40 °C)
Rail kit DW-VP16RE - 19" rackmount ears
Recorder Dimensions (H X W X D) 2.79” x 17.32” x 15.66” (71 x 440 × 397.8mm)
Serial ports RS485
USB interface Yes
Warranty 5 Year Limited Warranty
Certification ONVIF Conformant  TAA Compliance  UL Listed
Form Factor Embedded

Part Numbers

Model #

Supported Cameras

Storage Size

DW-VP1616PUp to 16 IP camerasNo local storage
DW-VP163T16P
Up to 16 IP cameras
3TB
DW-VP164T16P
Up to 16 IP cameras
4TB
DW-VP166T16P
Up to 16 IP cameras
6TB
DW-VP169T16P
Up to 16 IP cameras
9TB
DW-VP1612T16PUp to 16 IP cameras12TB
DW-VP1616T16PUp to 16 IP cameras16TB
DW-VP1618T16PUp to 16 IP cameras18TB
DW-VP1624T16PUp to 16 IP cameras24TB
DW-VP1632T16PUp to 16 IP cameras32TB

Accessories

DWS-myDW12M16C
myDW 16-channel subscription, 12 months
Learn more
DWSP-VACREMOTE
Remote control for VMAX recorders
Learn more
DW-KB100
System Control Keyboard
Learn more
DW-VP16RE
19in rack mount ears
Learn more
DW-POE496M
PoE switch - 4 channels
Learn more
DW-POE896M
PoE switch - 8 channels
Learn more

Documents

Title Type
VMAX IP Plus brochure
pdf Download
3rd Gen VMAX IP Plus 16-channel 16-PoE datasheet
pdf Download
DW-VP16xT16P AE specifications
doc Download
DW-VP16xT16P CAD drawings
dwg Download
VMAX IP Plus Quick setup guide
pdf Download
2nd Gen VMAX IP Plus QSG
pdf Download
VMAX IP Plus user manual
pdf Download
2nd Gen VMAX IP Plus Manual
pdf Download
View All Documents

Software

When updating the firmware of this product, it is important to know the hardware generation and how to identify the correct firmware file.
Use the table below to identify the correct firmware file for your unit.
Title Type Release Notes Version Update Date Compatibility Size
3rd gen DW-VP16xT16P firmware v1.5.6.1 bin v1.5.6.1 05/15/2025 50.19 MB Download
2nd gen DW-VP16xT16P firmware v1.5.2.4 bin v1.5.2.4 10/25/2022 HWID: hn-6616 40.77 MB Download
3rd gen DW-VP16xT16P firmware v1.5.1.9 bin v1.5.1.9 06/14/2022 HWID: DW-VP16 vx.x.x.x 46.33 MB Download
C3 CMS v1.2.4.89_Update2(20241023) for Mac zip v1.2.4.89_Update2(20241023) 02/25/2025 76.04 MB Download
Remote Client for MAC for VMAX IP Plus v2.3.11 zip - v2.3.11 05/25/2016 VMAX IP Plus 3.17 MB Download
